Maximizing material utilization

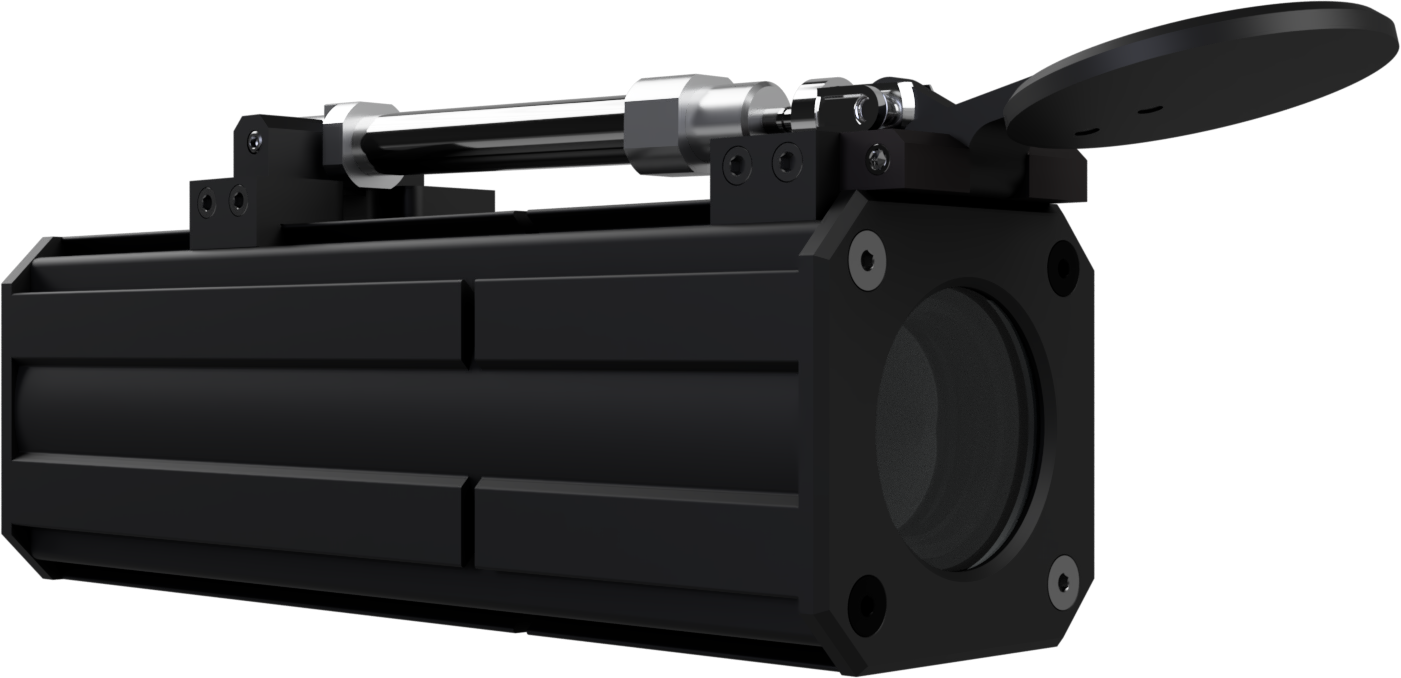

The IGEMS CNC Snapper takes detailed and accurate photos of the cutting table. The image provides the basis for optimal positioning in the NC program, saving time and minimizing material use.
On your marks, cut, done!
Anyone operating a CNC machine knows the time it takes setting up the material properly. Making sure your parts will fit the material and more importantly, making the machine start on the right position. IGEMS Snapper makes this almost too easy. Simply drag the toolpath to the desired position and start cutting. That’s it.
1. Place material
2. Take picture

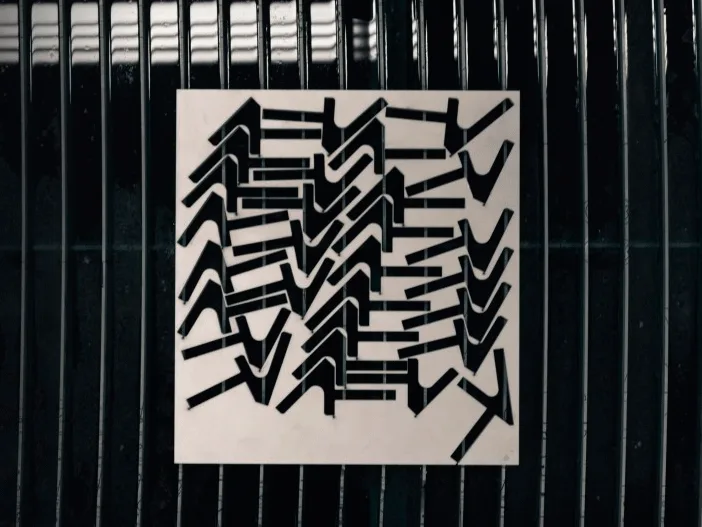

3. Place partsTechnical details
Material
Anodized 6082 aluminum
Camera resolution
12 megapixels
Mounting option
Clamp mount
Lens protection
Lid with pneumatic piston
Field of view
44°(H)
Outer dimensions
215mm×65mm×85mm
Power supply
DC 5.5-32V
Network connection
Ethernet
Communication
Static IP
Proudly produced in-house
As with many things here at IGEMS, the Snapper also starts its journey in our workshop. Here, Inge is preparing the outer aluminium shell for assembly.
